Introduction

Walk into almost any flour mill in Multan, a chemical storage facility in Rawalpindi, or a food processing plant near Lahore's industrial belt, and you will find platform scales, floor scales, and liquid tanks that need to weigh accurately, day in and day out. When these systems fail — or when a worn sensor starts giving readings that are off by a few kilograms — production decisions made on bad data can translate directly into financial loss.

The component at the heart of nearly every platform and tank weighing system in Punjab's industry is the shear beam load cell or its close relative, the bending beam load cell. Libra Weigh Tech is an authorised dealer supplying both types across Punjab, with stock held locally so that a floor scale load cell replacement does not mean a week of downtime. This article explains both cell types, how they work, where they are used across Punjab, and what the current shear beam load cell price in Pakistan looks like.

What is a shear beam load cell?

A shear beam load cell is a single-body force sensor shaped like a horizontal beam, fixed at one end and loaded vertically at the other. The name refers to the internal stress mode the sensor detects: when a vertical force pushes down on the free end while the fixed end is bolted to a frame, the beam experiences shear stress at its centre. Precision strain gauges bonded to the web of the beam — inside machined pockets that isolate them from bending stress — convert that shear deformation into a millivolt electrical signal proportional to the applied weight.

Because the sensing gauges are protected inside the beam body rather than exposed on a surface, shear beam designs are inherently robust. Sealed models carry IP67 or IP68 waterproof ratings, meaning they withstand continuous submersion — an important feature for wash-down environments in food plants and chemical facilities.

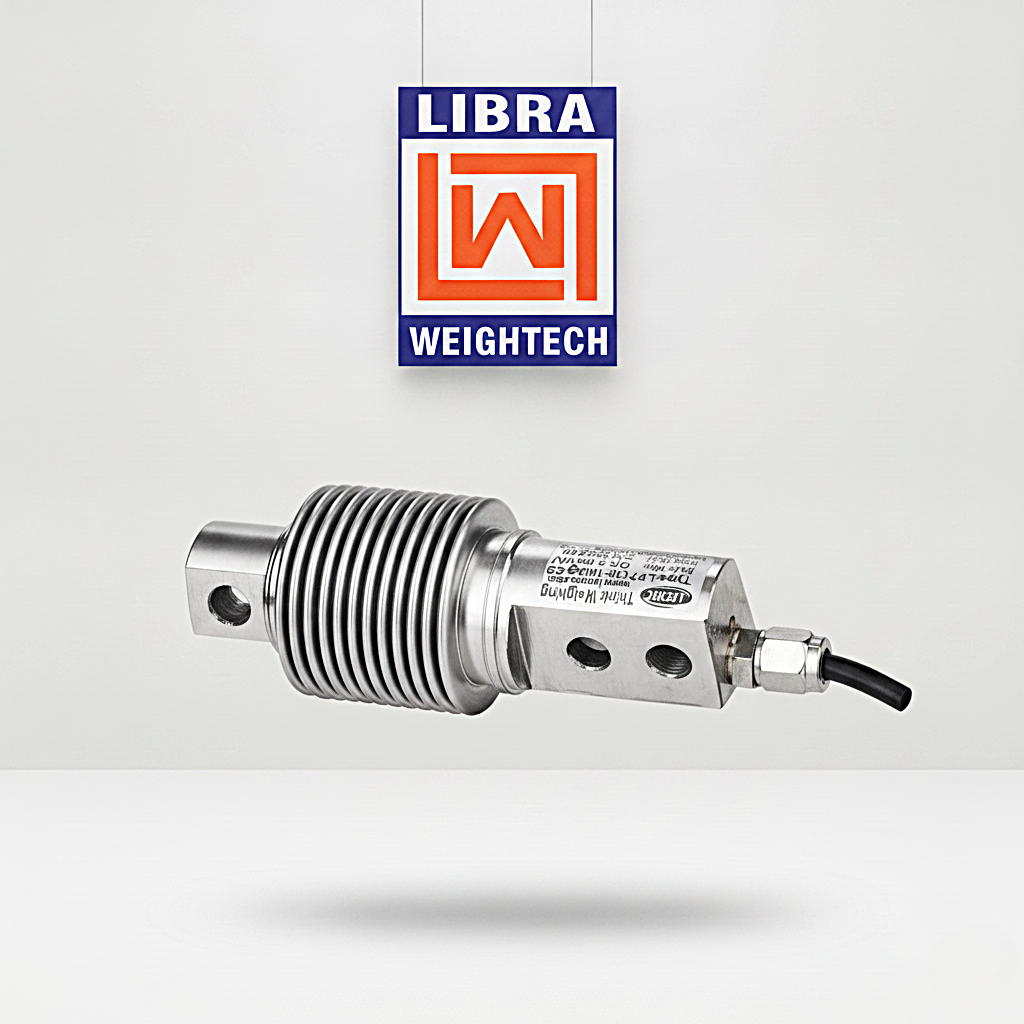

The bending beam load cell is a closely related design. Where a shear beam detects internal shear stress at the beam's neutral axis, a bending beam detects surface bending strain at the top and bottom faces of the beam. Bending beam cells are generally used at lower capacities (50 kg to 2 t), while shear beam designs cover medium to high capacities (200 kg to 20 t and beyond). Both are available as single ended beam type load cells — meaning one end mounts to a fixed structure and the other end receives the load — which makes them mechanically straightforward to install under platform scales and tank frames.

See also: S type load cell price in Pakistan

How do shear beam and bending beam load cells work?

Both designs share the same fundamental operating principle, differing only in which stress mode the gauges are positioned to detect.

1.  Load is applied.  A force — the weight of goods on a floor scale, liquid in a storage tank, or raw materials on a conveyor platform — presses down on the free end of the beam through a load introduction point (typically a bolt pad or spherical seat).

2.  The beam deforms.  In a shear beam, the web between the fixed and loaded ends experiences shear stress. In a bending beam load cell, the upper surface goes into compression and the lower surface into tension, with peak strain at the fixed end.

3.  Strain gauges respond.  Four gauges arranged in a Wheatstone bridge produce a millivolt output proportional to the deformation. The bridge configuration also cancels out temperature-induced resistance drift, keeping readings stable across ambient temperature changes.

4.  Signal is transmitted.  A shielded cable — four-wire standard, six-wire for remote-sense on long runs — carries the signal to a weight indicator, PLC, or junction box where signals from multiple cells are summed.

5.  The indicator calculates weight.  Applying the stored calibration factor, the indicator converts the millivolt signal to a weight reading. For a four-cell platform, the indicator averages and sums all four signals to give one stable reading.

6.  Overload protection.  Both beam types include mechanical stops or material safety factors that prevent permanent zero shift if the scale is accidentally overloaded — important on floor scales where forklift traffic is unpredictable.

Key applications in Punjab's industry

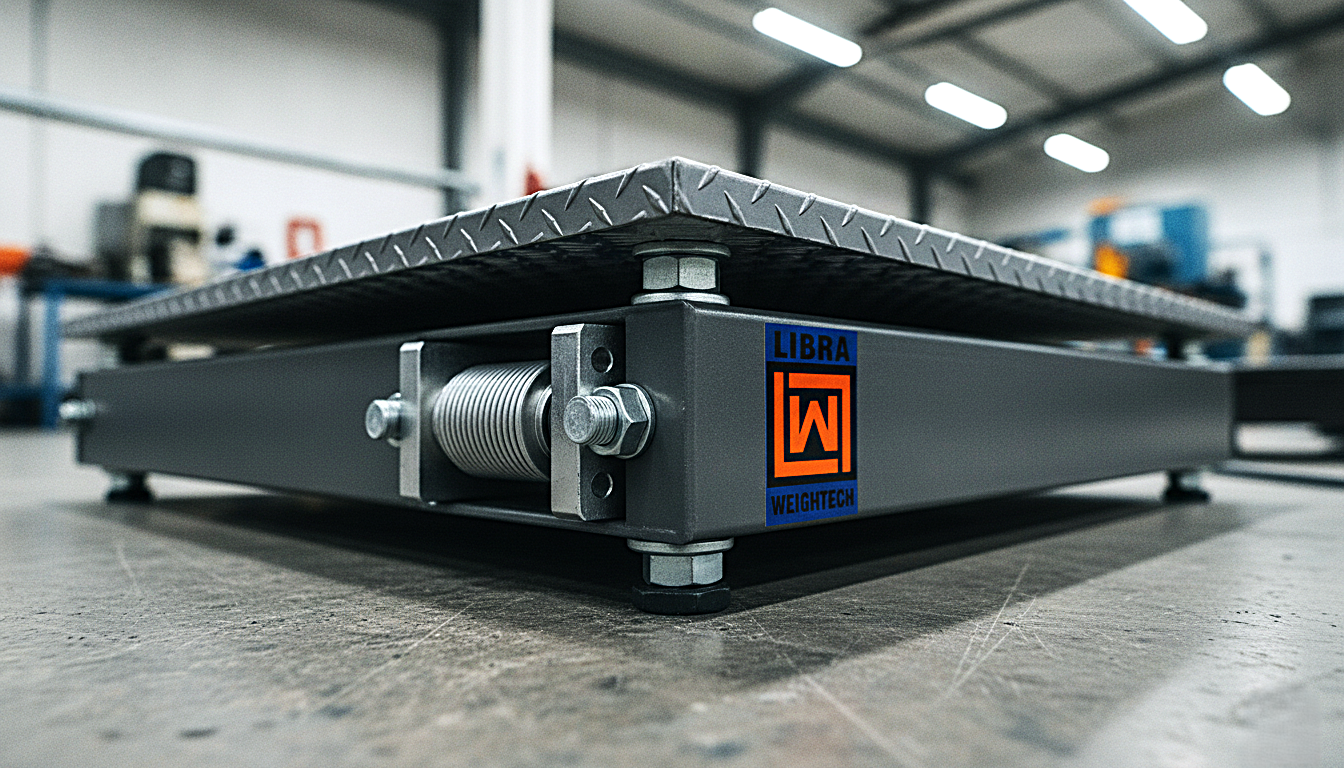

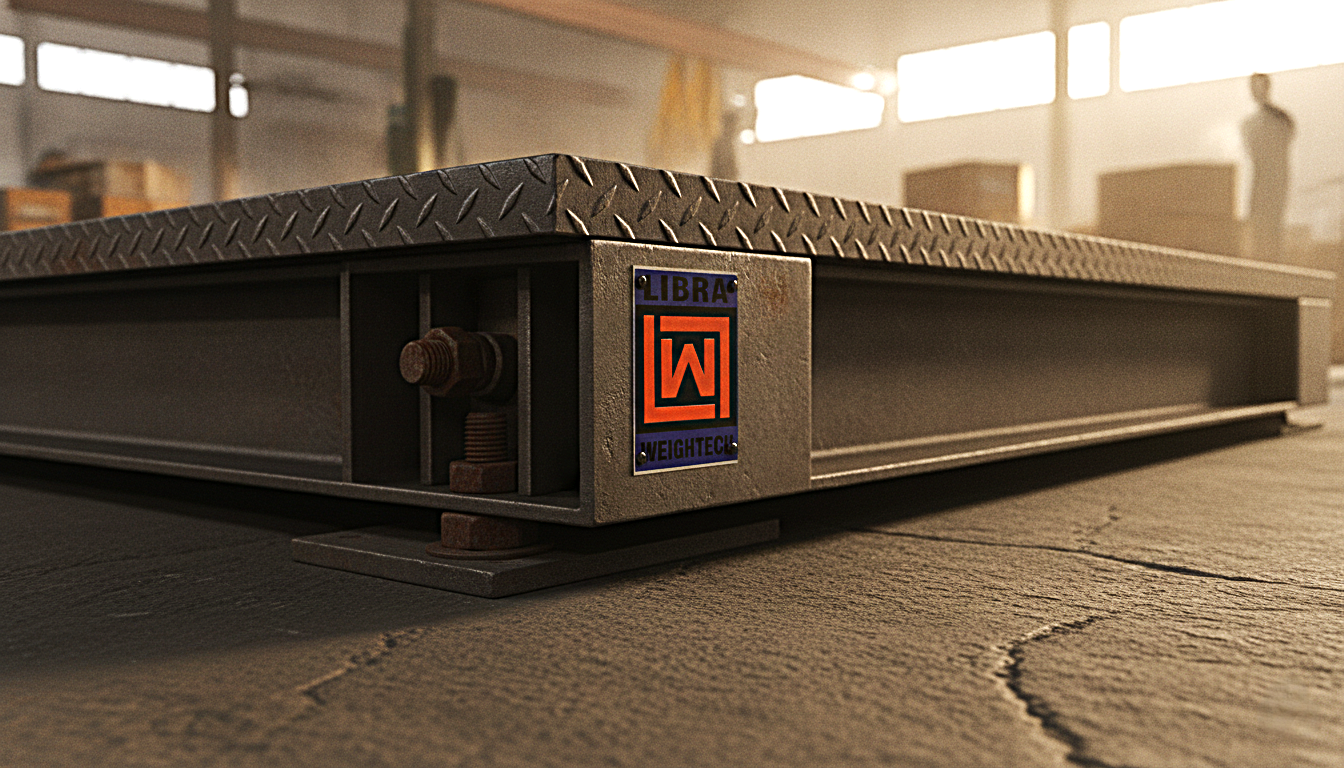

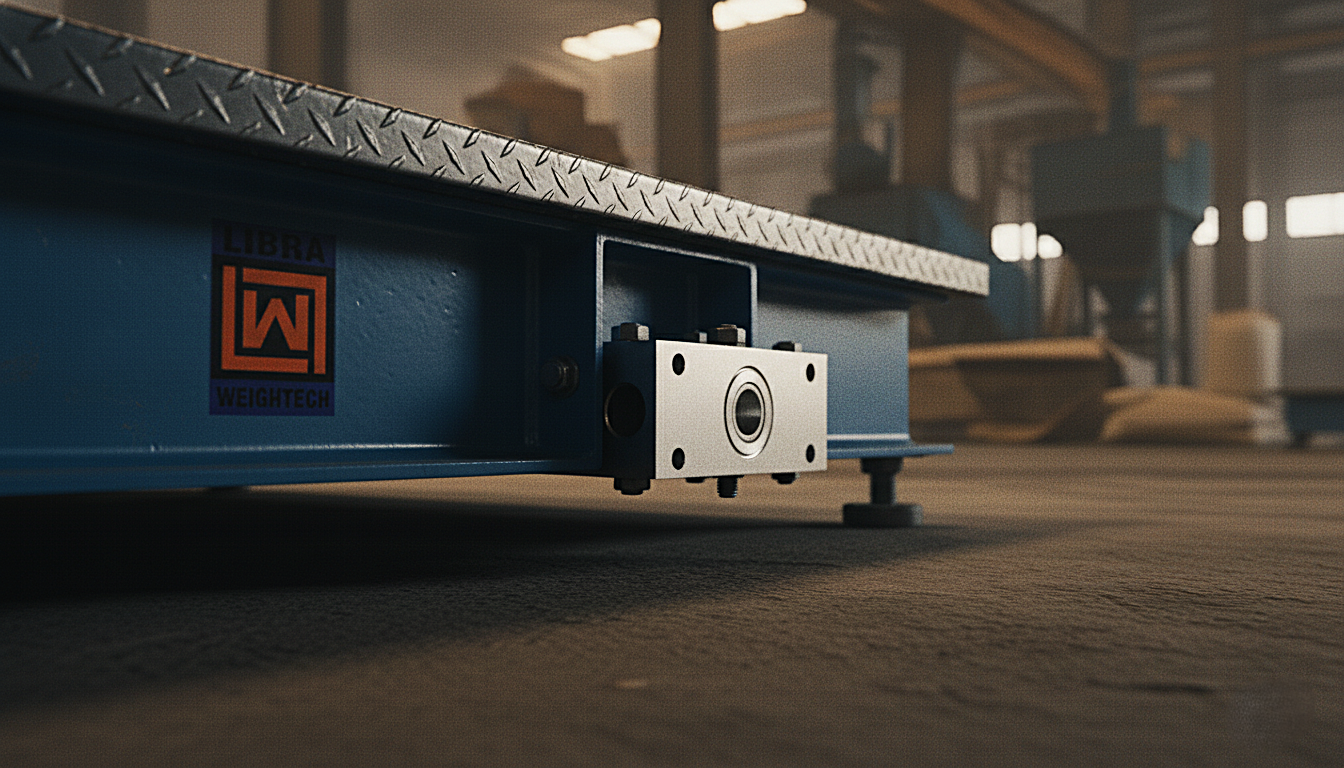

Platform and floor scales

The dominant use for the shear beam load cell across Punjab is under platform and floor scales used for goods intake and dispatch. Warehouse operators in Lahore's Sundar Industrial Estate and textile exporters in Faisalabad rely on 500 kg to 5,000 kg floor scales built on four shear beam cells. When a cell fails, floor scale load cell replacement is the fastest fix — and because shear beam cells are an industry standard stocked by Libra Weigh Tech in Lahore, a like-for-like replacement can be fitted and recalibrated the same day.

Tank and silo weighing

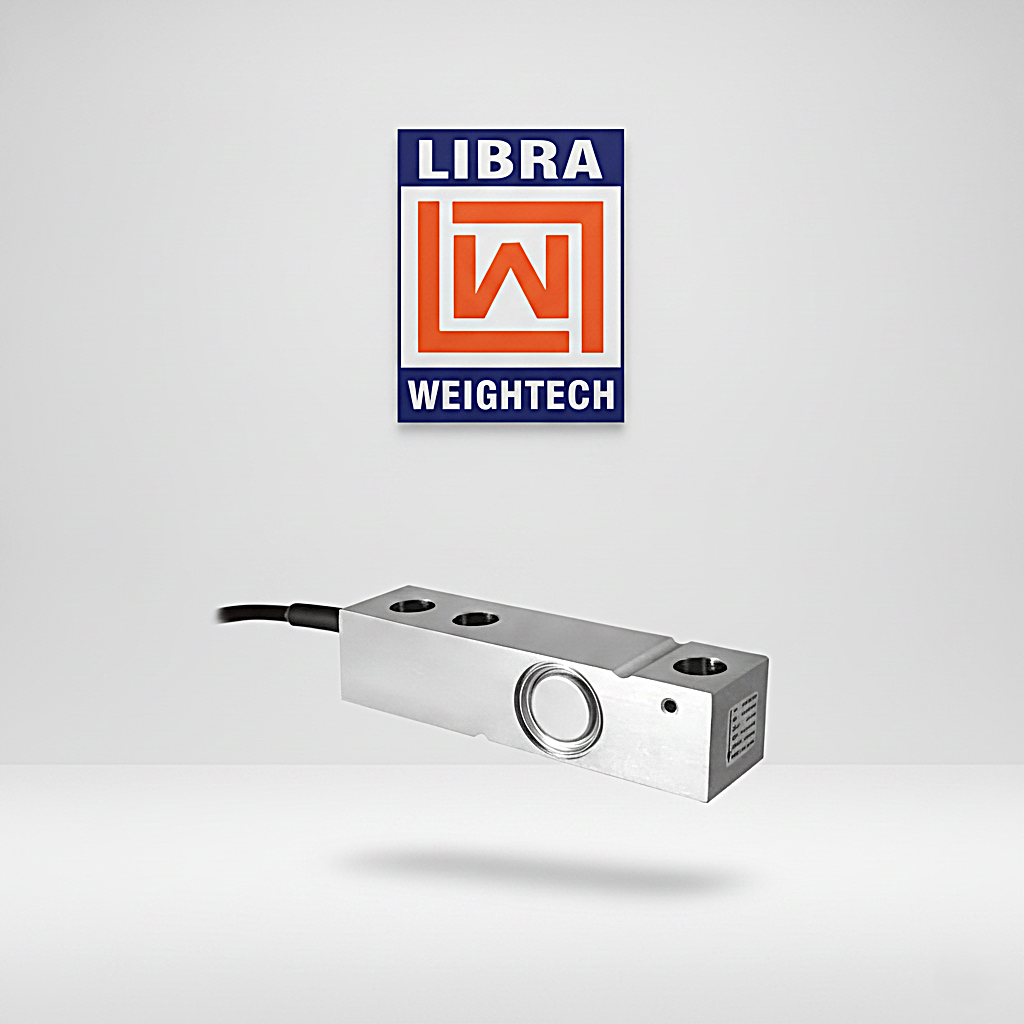

Storage tank weighing is one of the most critical applications for the shear beam design in Punjab's chemical, pharmaceutical, and food sectors. A tank weighing load cell installation places three or four cells under the tank's support legs, allowing continuous inventory monitoring without breaking into the process pipework. Facilities near Rawalpindi's industrial corridor and chemical plants on the outskirts of Multan regularly specify stainless steel shear beam load cells for tank applications because the material resists aggressive cleaning chemicals and eliminates the corrosion risk that would affect a standard alloy steel cell in a damp or chemical-exposure environment.

As an authorised tank weighing load cell supplier in Lahore, Libra Weigh Tech provides full installation packages — cells, mounting hardware, junction boxes, and calibrated indicators — reducing the number of contractors a procurement team needs to manage.

Low-capacity bending beam applications

For weighing applications under 2 tonnes — retail portion scales, laboratory balances, small hopper systems, and counting scales used in hardware distribution in Gujranwala — the bending beam load cell is the preferred choice. A bending beam load cell 1 ton / 2 ton design is compact, low-cost, and accurate to OIML C3 standards, making it suitable for legal-for-trade use. Stainless steel bending beam cells are widely used in bakeries and food packaging lines in Lahore and Faisalabad where regular wash-down is routine.

Conveyor and belt scales

Shear beam cells rated from 200 kg to 2 t are mounted in belt scale frames to continuously measure material flow on conveyor belts in cement plants, sugar mills, and grain handling facilities. The horizontal beam orientation fits neatly into the narrow profile of a belt scale weigh frame, and the IP68 rating is essential in environments where water, dust, and fine material constantly pass over the installation. Operations near Multan's agri-processing belt and Rawalpindi's materials handling facilities specify IP68-rated cells to avoid sensor replacement every wet season.

Axle weighing pads

Portable axle weighing pads used by transport companies in Rawalpindi, Lahore, and Gujranwala often use low-profile shear beam cells as the sensing element. A typical pad uses a single shear beam cell per pad, rated at 10 to 20 tonnes, with a robust steel housing that withstands tyre impact and repeated handling.

Types and specifications

Libra Weigh Tech stocks the following beam load cell configurations:

Standard alloy steel shear beam (analogue)
Capacities	200 kg, 500 kg, 1 t, 2 t, 5 t, 10 t, 20 t
Material	Alloy steel, nickel-plated
Output	2 mV/V ±0.25% (3 mV/V available)
Protection	IP67 standard
Accuracy	OIML C3 / NTEP on selected models
Mounting	Single-ended, fixed-end bolt pattern

Brands stocked:  Zemic (H8C, H10A series), Keli (SQB, SBO series), CAS, and Utilcell.

Full datasheets: /shear-beam-load-cell-datasheets

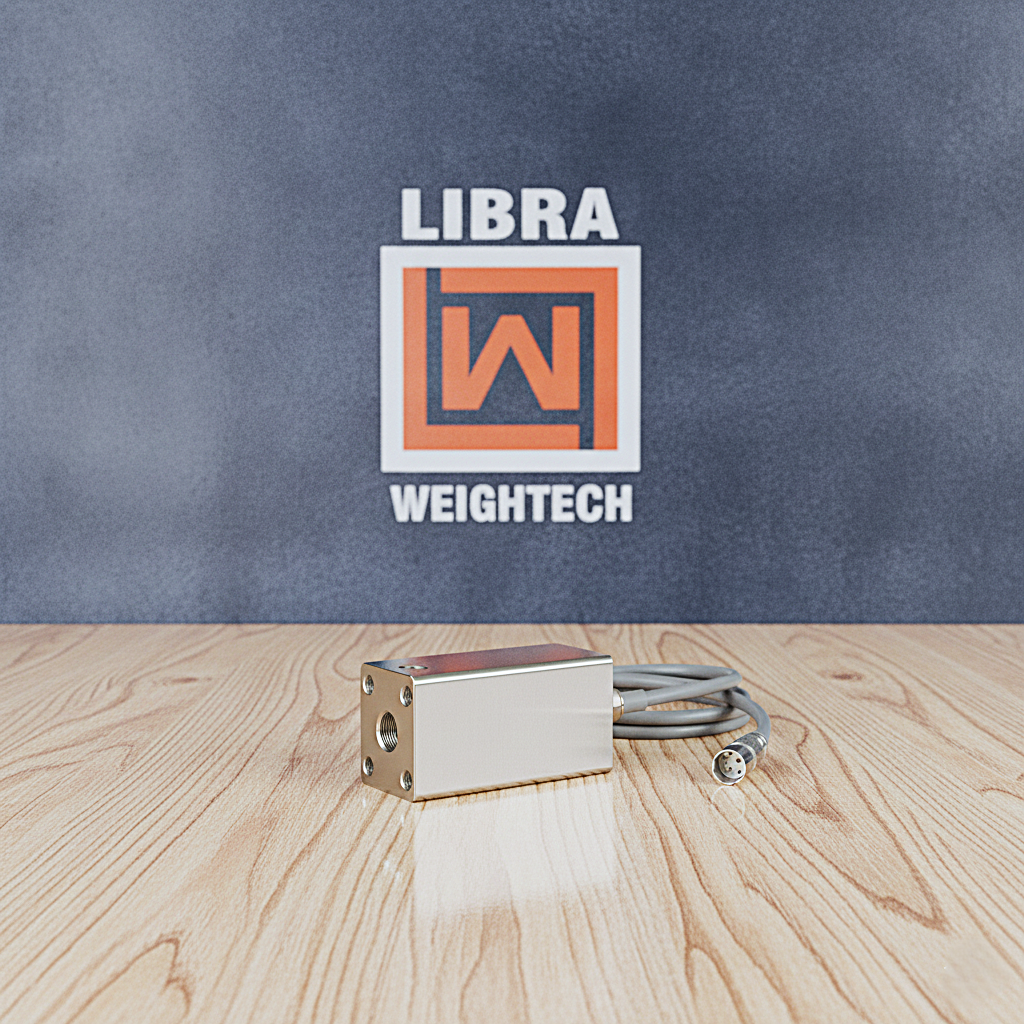

Shear beam load cell price in Pakistan — what to expect

Shear beam load cell price in Pakistan varies with capacity, material, IP rating, and brand. The table below reflects current indicative pricing from Libra Weigh Tech's Punjab stock.

Note:  Prices exclude GST, mounting hardware, and junction boxes. Contact Libra Weigh Tech for a written quotation for full floor scale or tank weighing packages.

Why choose Libra Weigh Tech in Punjab?

1.  Authorised dealer — genuine cells with factory certificates  —  Every shear beam and bending beam cell we supply comes with a manufacturer calibration certificate traceable to national standards. We do not supply repackaged or relabelled cells. For OIML C3-certified cells, we provide the full certificate number so it can be included in your quality documentation.

2.  Fast floor scale load cell replacement across Punjab  —  Our stock is held in Punjab — not in a Karachi bonded warehouse. That means same-day dispatch is realistic for Lahore and Faisalabad, and next-day delivery to Multan and Rawalpindi. A failed floor scale does not have to mean a week of lost throughput.

3.  Full tank weighing packages — not just the cell  —  As a tank weighing load cell supplier in Lahore, we supply the complete package: cells, stainless mounting hardware, summing junction boxes, and calibrated digital indicators. You deal with one supplier, not three.

4.  Technical support for correct specification  —  IP67 versus IP68, alloy steel versus stainless, single ended beam type versus shear beam — the choice matters and we help you get it right before the order, not after installation. Our team supports sites in Lahore, Rawalpindi, Faisalabad, Multan, and Gujranwala.

5.  Competitive, written pricing  —  We provide written quotations quickly. If you are comparing bending beam load cell prices across suppliers, ask for a quotation on the same brand, capacity, and IP rating — Libra Weigh Tech will match that format and be transparent about what is included.

Frequently asked questions

Q:  What is the difference between a shear beam load cell and a bending beam load cell?

A:  Both are single-ended beam-type sensors, but they detect different stress modes. A shear beam load cell detects internal shear stress at the neutral axis of the beam — this design suits medium to high capacities (200 kg to 20 t) and is more resistant to off-centre loading. A bending beam load cell detects surface bending strain, making it simpler and lower cost at smaller capacities (50 kg to 2 t). For floor scales and tank weighing in industrial environments, the shear beam is generally preferred; for retail, laboratory, or small hopper applications, the bending beam load cell 1 ton / 2 ton range is the standard choice.

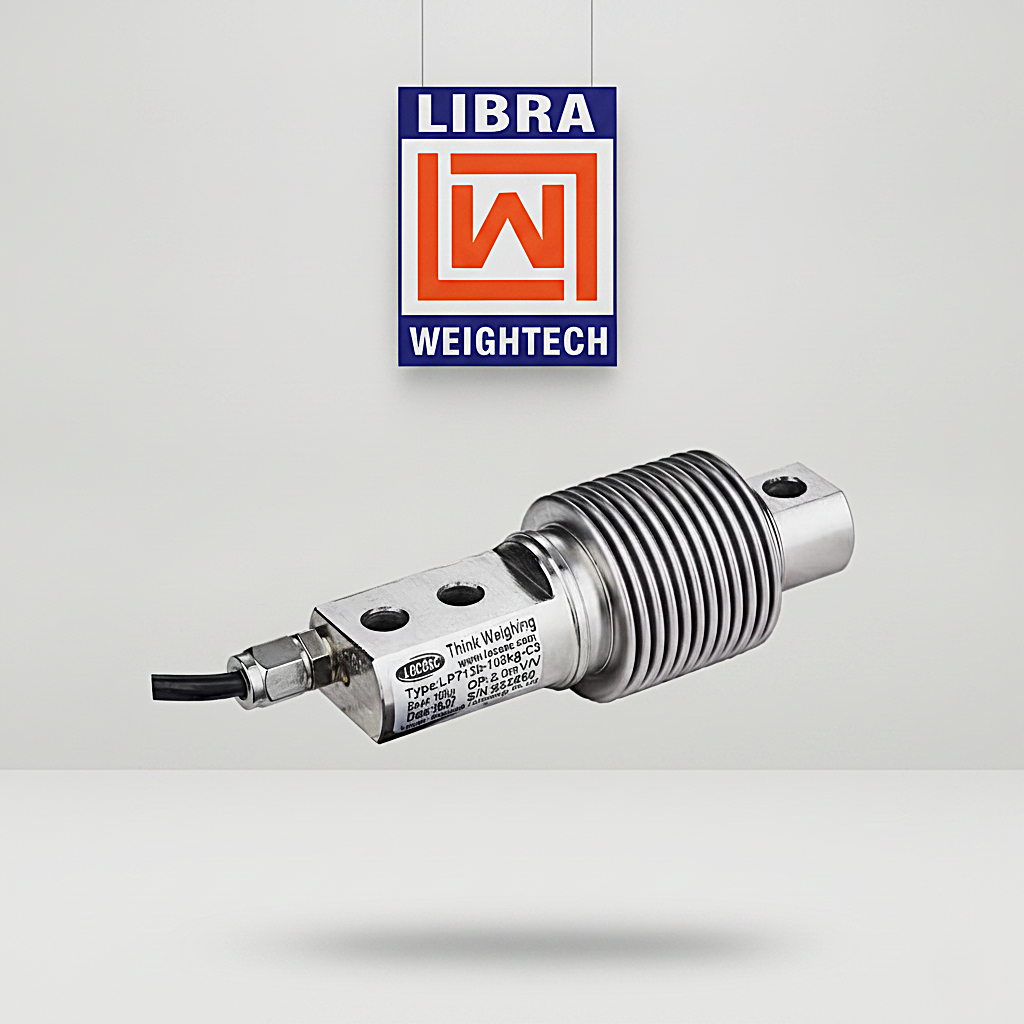

Q:  What does IP68 mean and when do I need it?

A:  IP68 is an ingress protection rating meaning the sensor is sealed against continuous submersion in water — typically rated to 1 metre depth or more. You need an IP68 waterproof shear beam load cell when the installation is in a wash-down environment (food plants, chemical facilities), outdoors without a cover, or in a pit where flooding is possible. IP67 covers temporary immersion and is sufficient for most indoor floor scale applications. All stainless steel shear beam load cells stocked by Libra Weigh Tech carry IP68 rating.

Q:  What is the shear beam load cell price in Pakistan for a standard 1-ton floor scale set of four?

A:  A set of four standard alloy steel IP67 shear beam cells rated at 1 t each — sufficient for a 4-tonne capacity floor scale — typically costs between PKR 28,000 and PKR 44,000 for the cell set, depending on brand. Adding a four-channel junction box and a basic digital indicator brings a complete replacement kit to approximately PKR 60,000–80,000. Contact Libra Weigh Tech for a written quotation including all hardware.

Conclusion

Whether you need a same-day floor scale load cell replacement in Lahore, a complete tank weighing solution for a chemical plant in Rawalpindi, or a batch of bending beam load cell 1 ton units for small hoppers in Faisalabad, Libra Weigh Tech has the stock, the technical knowledge, and the authorised supply chain to deliver correctly specified, certified product — fast.
